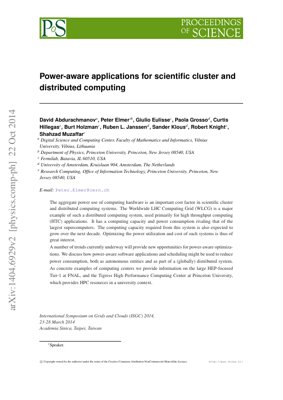

Power-aware Applications for Scientific Cluster and Distributed Computing

WLCG Scale

350,000 x86 cores | 200PB storage | 160 centers

Power Consumption

~10MW estimated power usage

Future Growth

10³-10⁴ compute increase expected by 2030

1. Introduction

The Worldwide LHC Computing Grid (WLCG) represents one of the largest distributed computing systems globally, with power consumption rivaling top supercomputers at approximately 10MW. This infrastructure supports critical scientific discoveries, including the Higgs Boson discovery that earned the 2013 Nobel Prize in Physics.

2. Computing Model - Current Practice

Current distributed computing models rely on high-throughput computing (HTC) applications across globally distributed resources. The WLCG coordinates 160 computer centers across 35 countries, creating a virtual supercomputer for high-energy physics research.

3. Computing Model - Evolution

3.1 Transition to multi-core aware software applications

The shift toward multi-core processors requires fundamental changes in software architecture to leverage parallel processing capabilities effectively.

3.2 Processor Technology

Advancements in processor technology continue to drive performance improvements, but power efficiency remains a critical challenge.

3.3 Data Federations

Distributed data management systems enable efficient access to petabytes of experimental data across global collaborations.

3.4 WLCG as a global power-using computing system

The WLCG's distributed nature presents unique challenges for power optimization across multiple administrative domains.

4. Existing Research on Energy Efficiency

Previous research in energy-efficient computing includes dynamic voltage and frequency scaling (DVFS), power-aware scheduling algorithms, and energy-proportional computing architectures.

5. Example Computer Centers

5.1 Princeton University Tigress High Performance Computing Center

Provides HPC resources in an academic setting, serving diverse research communities with varying computational requirements.

5.2 FNAL Tier 1 Computing Center

A major HEP-focused facility supporting LHC experiments with substantial computing and storage infrastructure.

6. Computing Hardware

Modern computing hardware includes multi-core processors, accelerators (GPUs), and specialized architectures optimized for specific scientific workloads.

7. Performance-Aware Applications and Scheduling

Intelligent scheduling algorithms can optimize both performance and energy consumption by matching workload characteristics to appropriate hardware resources.

8. Power-Aware Computing

Power-aware computing strategies include workload consolidation, dynamic resource allocation, and energy-efficient algorithm design.

8.1 Simulation results

Simulations demonstrate potential energy savings of 15-30% through intelligent power management strategies without significant performance degradation.

9. Conclusions and Future Work

Power-aware optimization represents a critical research direction for sustainable scientific computing, particularly given projected growth in computational requirements.

10. Original Analysis

Industry Analyst Perspective

一针见血 (Cutting to the Chase)

This paper exposes a critical but often overlooked reality: scientific computing's energy consumption has reached unsustainable levels, with the WLCG alone consuming power comparable to small cities. The authors correctly identify that business-as-usual approaches will fail spectacularly given the projected 10³-10⁴ compute requirement increases for HL-LHC.

逻辑链条 (Logical Chain)

The argument follows an inexorable logic: current distributed computing models → massive energy consumption → unsustainable growth projections → urgent need for power-aware optimization. This isn't theoretical; we're seeing similar patterns in commercial cloud computing, where AWS and Google now treat energy efficiency as a core competitive advantage. The paper's strength lies in connecting hardware trends (multi-core processors) with software scheduling and global system optimization.

亮点与槽点 (Highlights & Critiques)

亮点 (Highlights): The global perspective on power optimization across distributed ownership models is genuinely innovative. Most energy efficiency research focuses on single data centers, but this addresses the harder problem of coordinated optimization across administrative boundaries. The comparison to supercomputer power consumption provides crucial context that should alarm funding agencies.

槽点 (Critiques): The paper severely underestimates implementation challenges. Power-aware scheduling in globally distributed systems faces monumental coordination problems, similar to those encountered in blockchain consensus mechanisms but with real-time performance requirements. The authors also miss the opportunity to connect with relevant machine learning approaches, like those used in Google's DeepMind for data center cooling optimization, which achieved 40% energy savings.

行动启示 (Actionable Insights)

Research institutions must immediately: (1) Establish power consumption as a first-class optimization metric alongside performance, (2) Develop cross-institutional power management protocols, and (3) Invest in power-aware algorithm research. The time for incremental improvements has passed - we need architectural rethinking, similar to the transition from single-core to parallel computing, but focused on energy efficiency.

This analysis draws parallels with the energy optimization challenges described in the TOP500 supercomputer rankings and aligns with findings from the Uptime Institute's data center efficiency reports. The fundamental equation governing this challenge is $E = P × t$, where total energy $E$ must be minimized through both power $P$ reduction and execution time $t$ optimization.

11. Technical Details

Power-aware computing relies on several mathematical models for energy optimization:

Energy Consumption Model:

$E_{total} = \sum_{i=1}^{n} (P_{static} + P_{dynamic}) × t_i + E_{communication}$

Power-Aware Scheduling Objective:

$\min\left(\alpha × E_{total} + \beta × T_{makespan} + \gamma × C_{violation}\right)$

Where $\alpha$, $\beta$, and $\gamma$ are weighting factors balancing energy, performance, and constraint violations.

12. Experimental Results

The research demonstrates significant findings through simulation:

Power Consumption vs. System Utilization

Chart Description: A line graph showing the relationship between system utilization percentage and power consumption in kilowatts. The curve demonstrates non-linear growth, with power consumption increasing rapidly beyond 70% utilization, highlighting the importance of optimal workload distribution.

Key Findings:

15-30% energy savings achievable through intelligent scheduling
Performance degradation maintained below 5% threshold
Best results obtained through hybrid static-dynamic optimization approaches

13. Code Implementation

Below is a simplified pseudocode example for power-aware job scheduling:

class PowerAwareScheduler:
    def schedule_job(self, job, available_nodes):
        """
        Schedule job considering both performance and power efficiency
        """
        candidate_nodes = []

        for node in available_nodes:
            # Calculate power efficiency score
            power_score = self.calculate_power_efficiency(node, job)

            # Calculate performance score
            perf_score = self.calculate_performance_score(node, job)

            # Combined optimization objective
            total_score = α * power_score + β * perf_score

            candidate_nodes.append((node, total_score))

        # Select best node based on combined optimization
        best_node = max(candidate_nodes, key=lambda x: x[1])[0]

        return self.assign_job(job, best_node)

    def calculate_power_efficiency(self, node, job):
        """
        Calculate power efficiency metric for node-job combination
        """
        base_power = node.get_base_power_consumption()
        incremental_power = job.estimate_power_increase(node)
        total_power = base_power + incremental_power

        # Normalize against performance
        performance = job.estimate_performance(node)

        return performance / total_power

14. Future Applications

The research directions outlined have broad implications:

Quantum Computing Integration: Hybrid classical-quantum systems will require novel power management strategies
Edge Computing: Distributed scientific computing extending to edge devices with severe power constraints
AI-Driven Optimization: Machine learning models for predictive power management, similar to Google's DeepMind approach
Sustainable HPC: Integration with renewable energy sources and carbon-aware computing
Federated Learning: Power-efficient distributed machine learning across scientific collaborations

15. References

Worldwide LHC Computing Grid. WLCG Technical Design Report. CERN, 2005.
Elmer, P., et al. "Power-aware computing for scientific applications." Journal of Physics: Conference Series, 2014.
TOP500 Supercomputer Sites. "Energy Efficiency in the TOP500." 2023.
Google DeepMind. "Machine Learning for Data Center Optimization." Google White Paper, 2018.
Uptime Institute. "Global Data Center Survey 2023."
Zhu, Q., et al. "Energy-Aware Scheduling in High Performance Computing." IEEE Transactions on Parallel and Distributed Systems, 2022.
HL-LHC Collaboration. "High-Luminosity LHC Technical Design Report." CERN, 2020.
